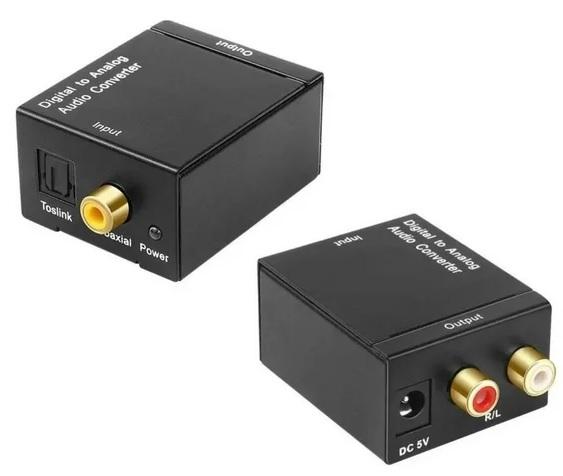

DIGITAL AUDIO TO ANALOG CONVERTER – AD011
SPECIFICATIONS
Signal Inputs/Output
Input Audio Coaxial or Toslink digital audio
Output Audio L/R audio
Connector
Input audio connector Toslink?1XRCA(Coaxial)
Output audio connector:2XRCA(R/L)
Sampling rate:32, 44.1, 48 and 96 KHz
Size(L-W-H):51X41X26MM
Operating Temperature:0 ? to +70?
Operating Humidity:10% to 85 % RH (no condensation)
Storage Temperature:-10? to +80?
Storage Humidity:5% to 90 % RH (no condensation)
Power Requirement
External Power Supply: 5V DC@2A
Power Consumption:0.5 watts (max)
Converter Unit:FCC,CE,UL
Power Supply: UL,CE,FCC
Accessories Adapter
AC Power Adapter:US standard, UK standard and so on
User Manual:English Version
5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off
Connect the audio source device to the Converter using appropriate Toslink or Coaxial cables
PACKAGE CONTENTS
Main unit (Digital to Analog Audio Converter)
5V/DC POWER SUPPLY
USERs Manual.
Weight (Net):78g
Warranty
Limited Warranty:1 Year Parts and Labor
Environmental
