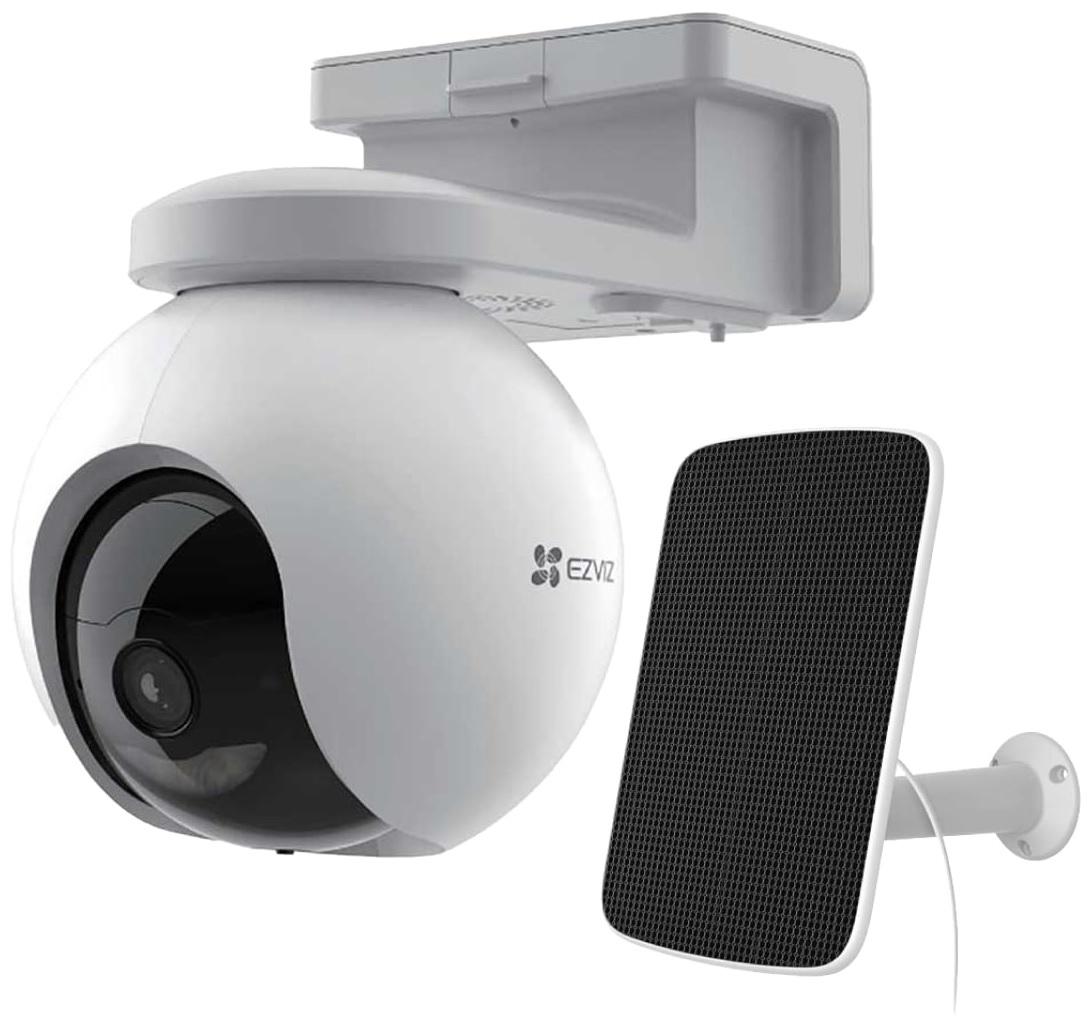

EZVIZ HB8 PT WIFI CAMERA + SOLAR PANEL – E-HB8SP
HB8 2K+ Battery – Powered Pan & Tilt Wi-Fi Camera
Specifications
Model : CS-HB8 (4MP)
Camera
Image Sensor: 1/3 4-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)
Shutter Speed: Self-Adaptive shutter
Lens: 4mm @ F1.6 Viewing Angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)
PT Angle: Pan: 340°, Tilt: 65°
Day & Night: IR-Cut Filter with Auto-Switching
DNR: 3D DNR
Night Vision: Up to 49 ft / 15 m
Video & Audio
Max. Resolution: 2560 × 1440
Frame Rate: 15fps. Self-Adaptive during Network Transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD; HD; Standard. Adaptive Bit Rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 2 Mbps
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz – 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement: 4Mbps
Function
Detection: Smart Human Motion Detection
Two-Way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage: Build-In 32GB eMMC Storage
Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription required)
General
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F ), Humidity 95% or less (Non-condensing)
IP Grade: Weatherproof Design
Power Consumption: Max. 10W
Product Dimensions: 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)
Packaging Dimensions 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)
Weight Net: 803 g (28.32 oz) With Package: 1060 g (37.39 oz)
Battery
Battery Capacity: 10400 mAh
Power Supply: DC 5V / 2A
In The Box
HB8 2K? Camera
Drilling Template
USB Cable
Screw Kit
Quick Installation Guide
Regulatory Information
Quick Start Guide
Certifications
Certifications: CE / FCC / WEEE / RoHS / REACH / UL
