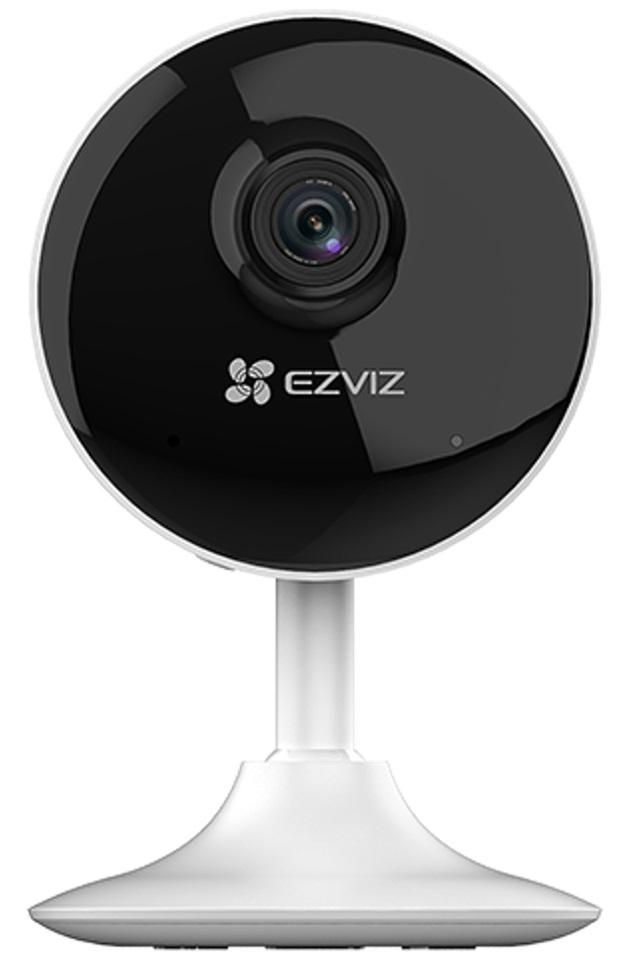

EZVIZ SMART HOME CAMERA – C1C-B
C1C-B
1080p
H.265
Smart Home Camera
C1C-B
Keep Your Home Fully Secured
Specifications
Model: CS-C1C-B (1080P)
Version: E0-1E2WF
Camera
Image Sensor: 1/3 Progressive Scan CMOS
Shutter Speed: Self-adaptive Shutter
Lens: 2.8 mm, view angle: 108 (Diagonal), 91 (Horizontal), 50 (Vertical)
Minimum Illumination: 0.5 Lux @(F2.2, AGC ON), 0 Lux with IR
Lens Mount: M12
Day & Night: IR-cut filter with Auto-Switching
DNR: 3D DNR
Night Vision: 12 m
Video & Audio
Max. Resolution: 1920 × 1080
Frame Rate: Max: 25 fps; Self-Adaptive during Network Transmission
Video Compression: H.265
H.265 Type: Main Profile
Video Bit Rate: Full HD; Hi-Def; Standard. Adaptive bit rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 1 Mbps
Function
Smart Alert: Motion detection
Two-way Talk: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Network
Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz – 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Storage
Local Storage: MicroSD Card Slot (Max. 256 GB)
Cloud Storage: EZVIZ Cloud Storage
