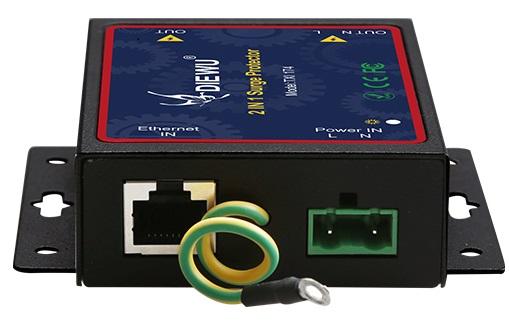

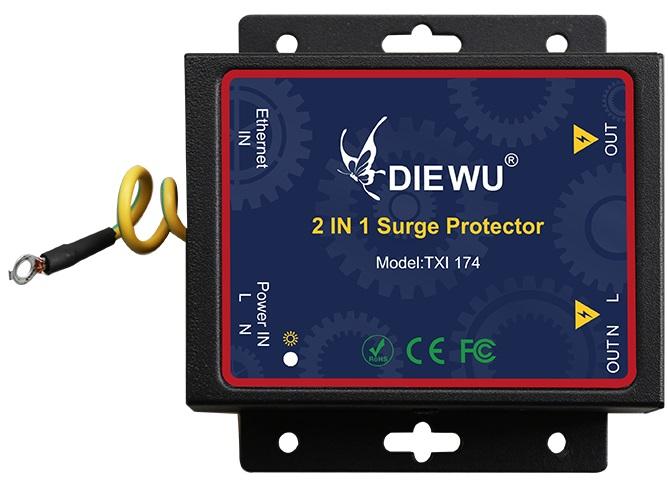

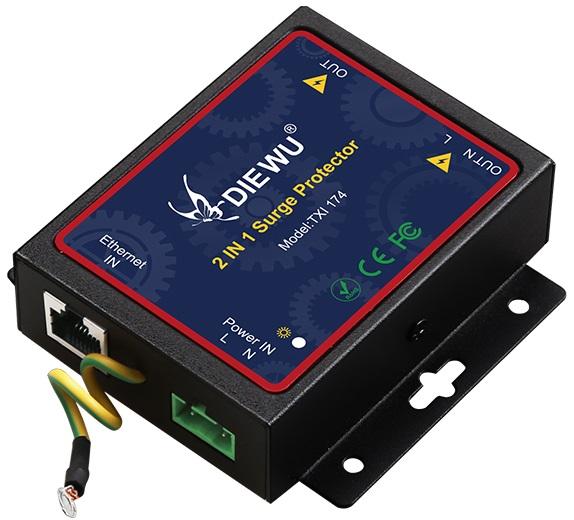

NETWORK LIGHTNING PROTECTOR – TXI174
Product Specification
2 IN 1 Surge Protector
Model Number: TXI 174
Protection Circuit: Network:1/2 3/6 4/5 7/8 Power: L/N
Connector: RJ45 x 2 Power Connector x 2
Insertion Loss: 0.5dB
Ethernet Rate: 1000Mbps
Maximum Discharge Current (Imax): 5KA (10 times),10KA (1 times), (8/20µs)
Working Voltage: AC220V
Dimension: 86 x 84 x 25mm
Environment
Operating Temperature: -40 ?-85 ?
Relative Humidity: 10%-90%(Non-Condensing)
Storage Temperature: -40?-85?
Relative Humidity: 5%-90%(Non-Condensing)
