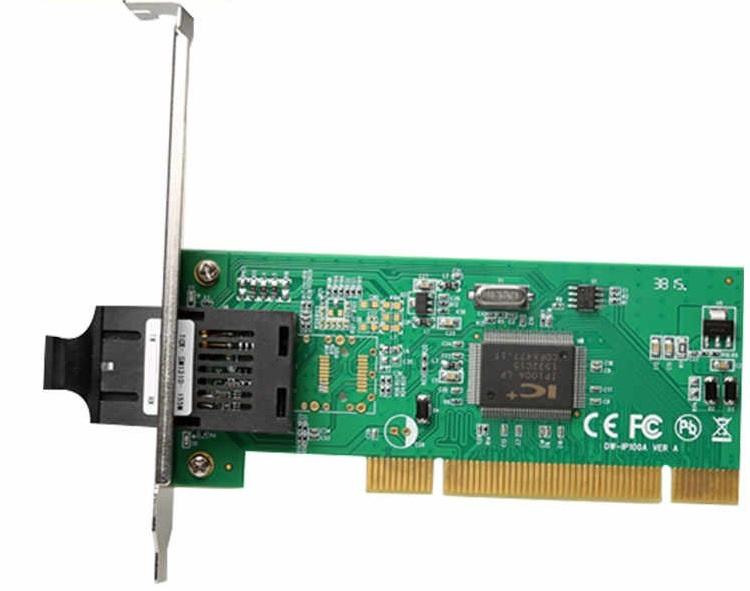

PCI FIRE CARD – TXA025
Model number: TXA025
Chipset: ICplus IP100A Ethernet Controller
Port number: 2 x SC or 1 x SC
Standard: IEEE 802.3, IEEE 802.3u,IEEE 802.3x,IEEE 802.1p
Data rate: 10/100Mbps
Transmission distance: 20 km
Interface: PCI
LED: Indicator 10/100Mb(Link/Act)
Dimension: 120 x 51 x 13.8mm
Support OS
Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server 2012, 2008 R2, 2003(32/64)
Mac OS® 10.x (Intel based, tested up to 10.9)
Linux 2.4.x and later (Tested up to 3.5)
Environment
Operating Temperature: 0 ?-70 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -0?-80?
Relative Humidity: 5%-90%(non-condensing)
Other Functions: WOL
Support PXE
Features:
Single chip 10/100BASE, half or full duplex Ethernet Media Access Controller
IEEE 802.3 compliant 100BASE-TX/100BASE-FX/10BSE-T
PCI Bus master scatter/gather DMA on any byte boundary
Full operation with PCI Clock from 25 MHz to 33 MHz
PCI Revision 2.2 compliant
On-chip transmit and receive FIFO buffers
On-chip LED drivers
Power management capabilities for ACPI 1.0 compliant systems
Wake On LAN support
Management statistics gathering
IP multicast receive and filter support using 64 bit hash table
Transmit polling
Auto pad insertion for short packets
Programmable minimum Inter Packet Gap
Programmable transmit and receive FIFO watermarks
Smart Cable Analyzer (SCA) Support
Capable of using 93C46 or 93C56 EEPROM
On-chip crystal oscillator
On-chip voltage regulator
2.5/3.3V CMOS with 5V tolerant I/O
0.25µm technology
128-pin PQFP
