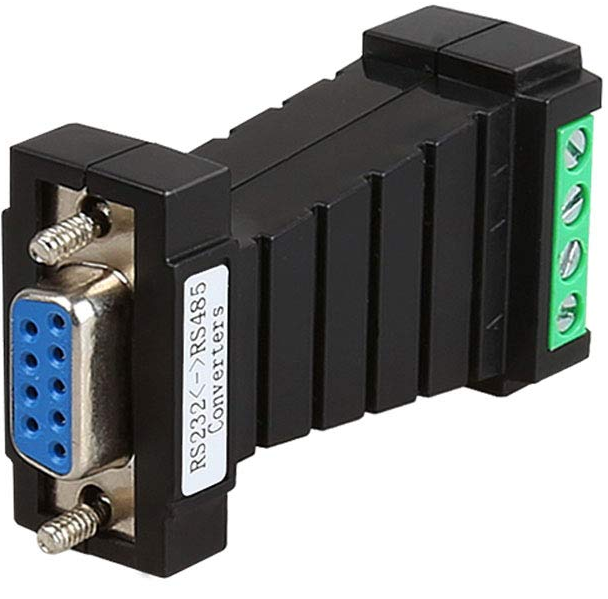

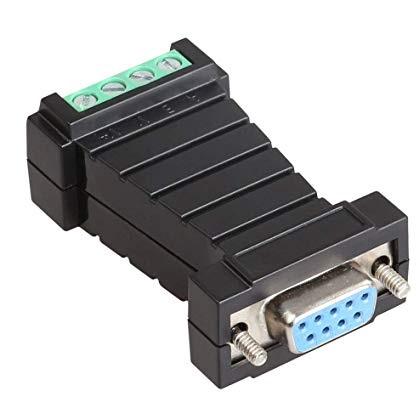

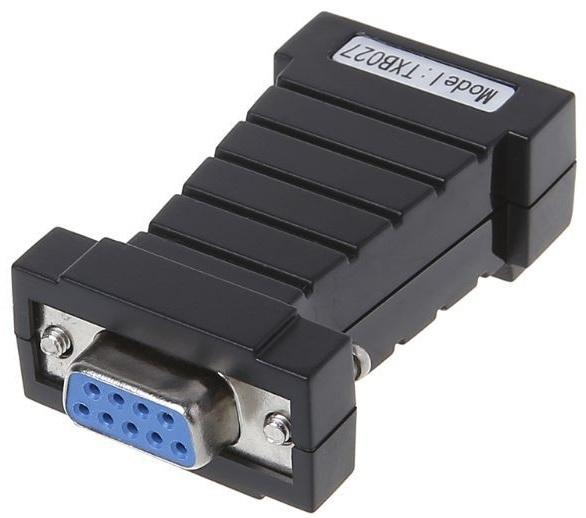

RS232 TO RS485 – TXB027
Model number: TXB027
Chipset: ZT323+ZT485
Port number: 1 x fe-male com port,1 x RS485 port
Standard: compatible with RS232 and RS485 standard
LED Indicator: NA
Baud rate: 300bps – 115200bps
Dimension: 57 x 34 x 19mm
Power Input: No need or DC9V
Power Consumption: Max0.15W
Environment
Operating Temperature: -10 -55
Relative Humidity: 10%-90% (non-condensing)
Storage Temperature: –40 – 85
Relative Humidity: 5%-90% (non-condensing)
