USB 3.1 (TYPE C) PCI-E CARDS

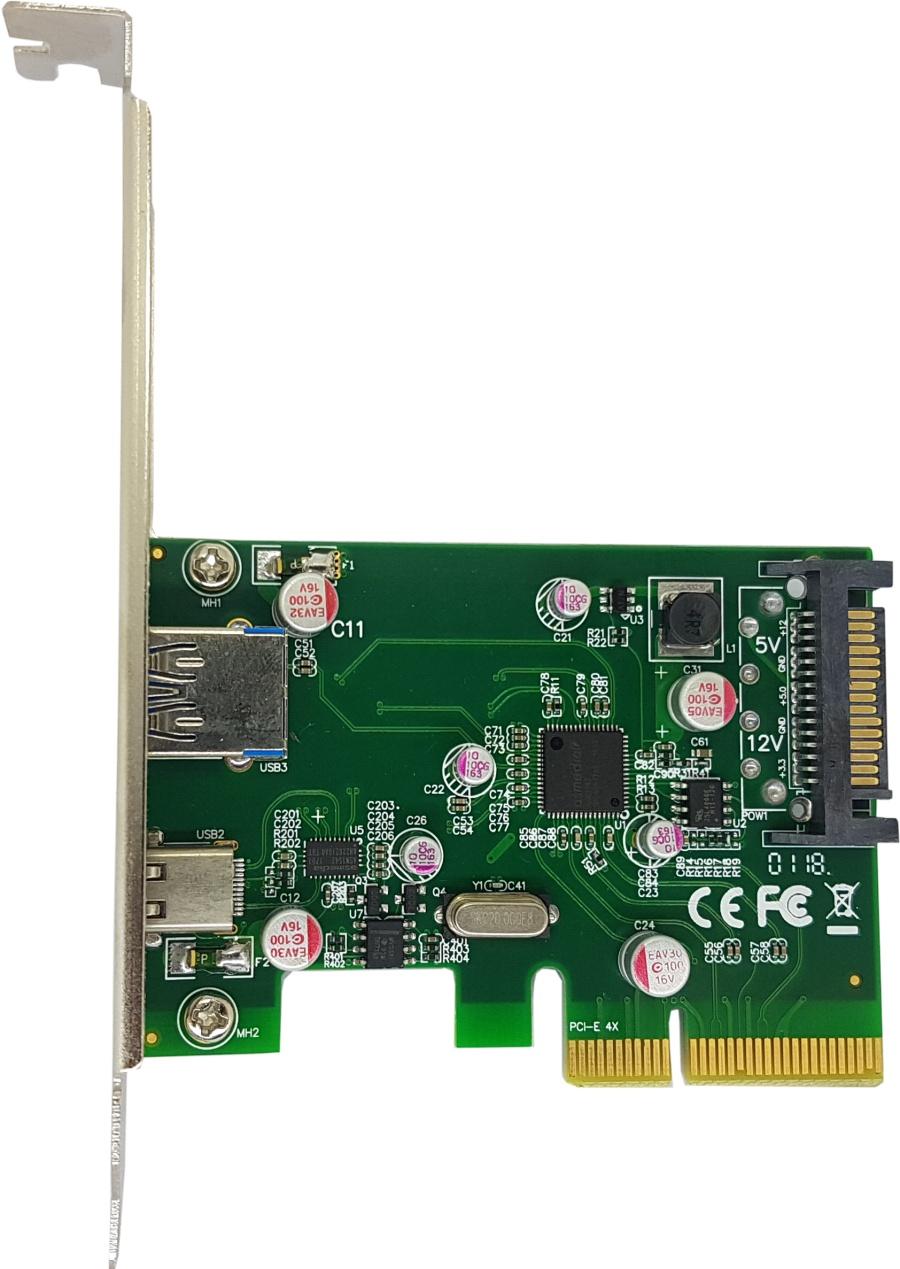

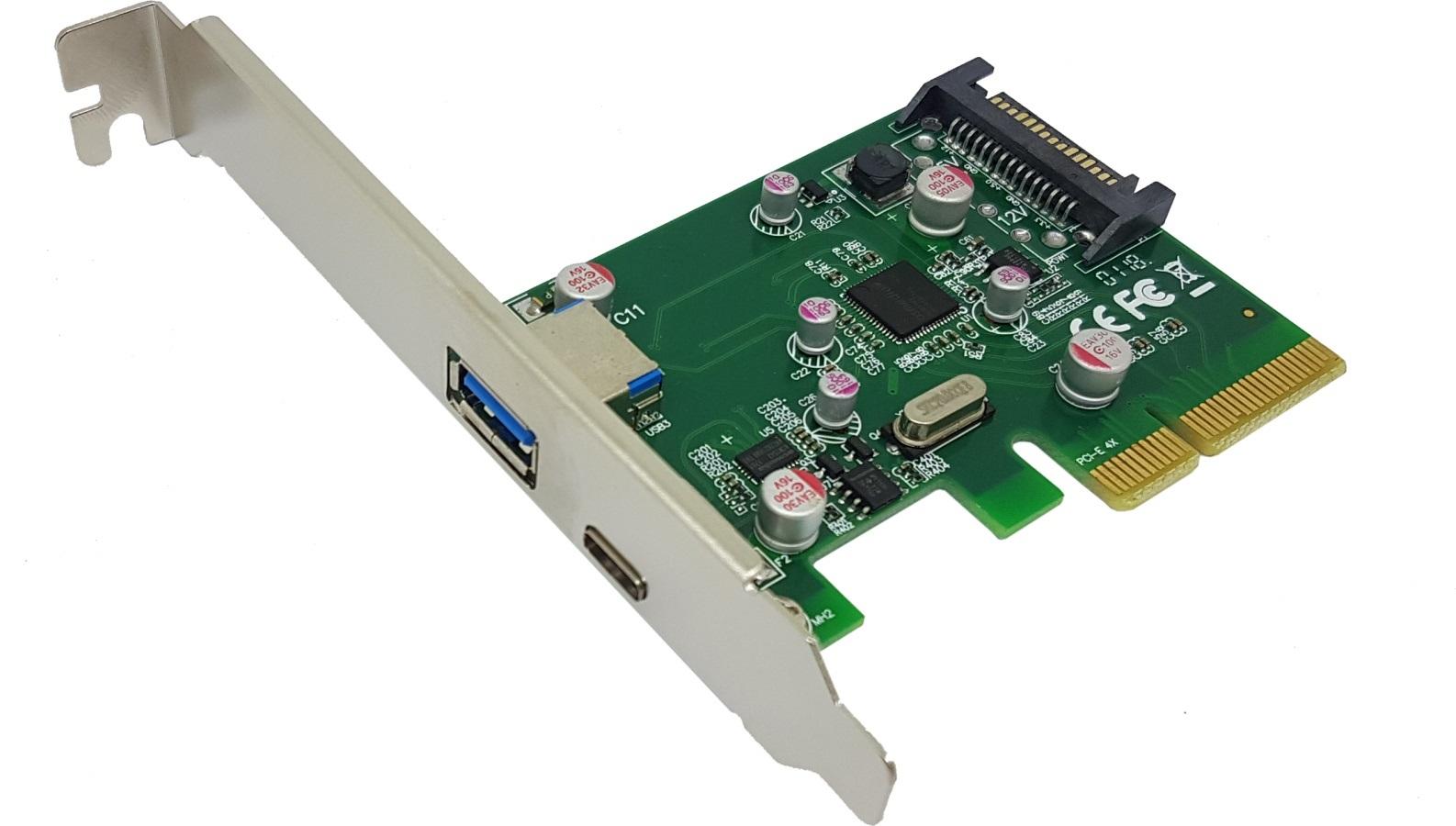

USB 3.1 (TYPE C) PCI-E CARDS – E1001

USB3.1 out, the speed is very fast, but the ordinary hard drive simply not so fast speed,

Must use SSD to achieve so fast speed, and just out of the price is very expensive,

For this situation, we launched to USB3. 1 GEN1 5G version of the TYPE-C expansion card

For everyone to try to experience the positive and negative card.

Name: TYPE-C + Fast Charge + 19PIN Expansion Board

Type: USB 3.1 PCI-E Card

Interface: USB3.1 interface

Master chip: AS Media ASM1042A+GL35XX

System support: WinXP/Vista/Win7/Win8 32bit/64bit MAC10.8

Input interface: using the latest USB3.1 Type-C interface

USB3.1 Type-C interface is approximately 8.25 * 2.4mm

USB3.1 Type-C interface contains 24pin terminal, support positive and negative plug

Data transfer rate can reach USB 3.1 GEN 1 5Gbps

With SATA 15PIN taking electrical interface.

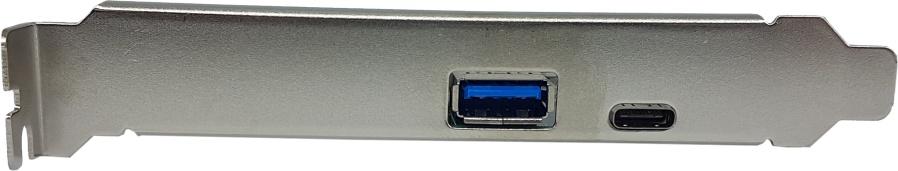

Output interface:

Function 1: 1x TYPE-C GEN1 interface

Function 2: 1x Front 19PIN interface

Function 2: 1x 2.4A fast charge interface
