ETHERNET TO RS485

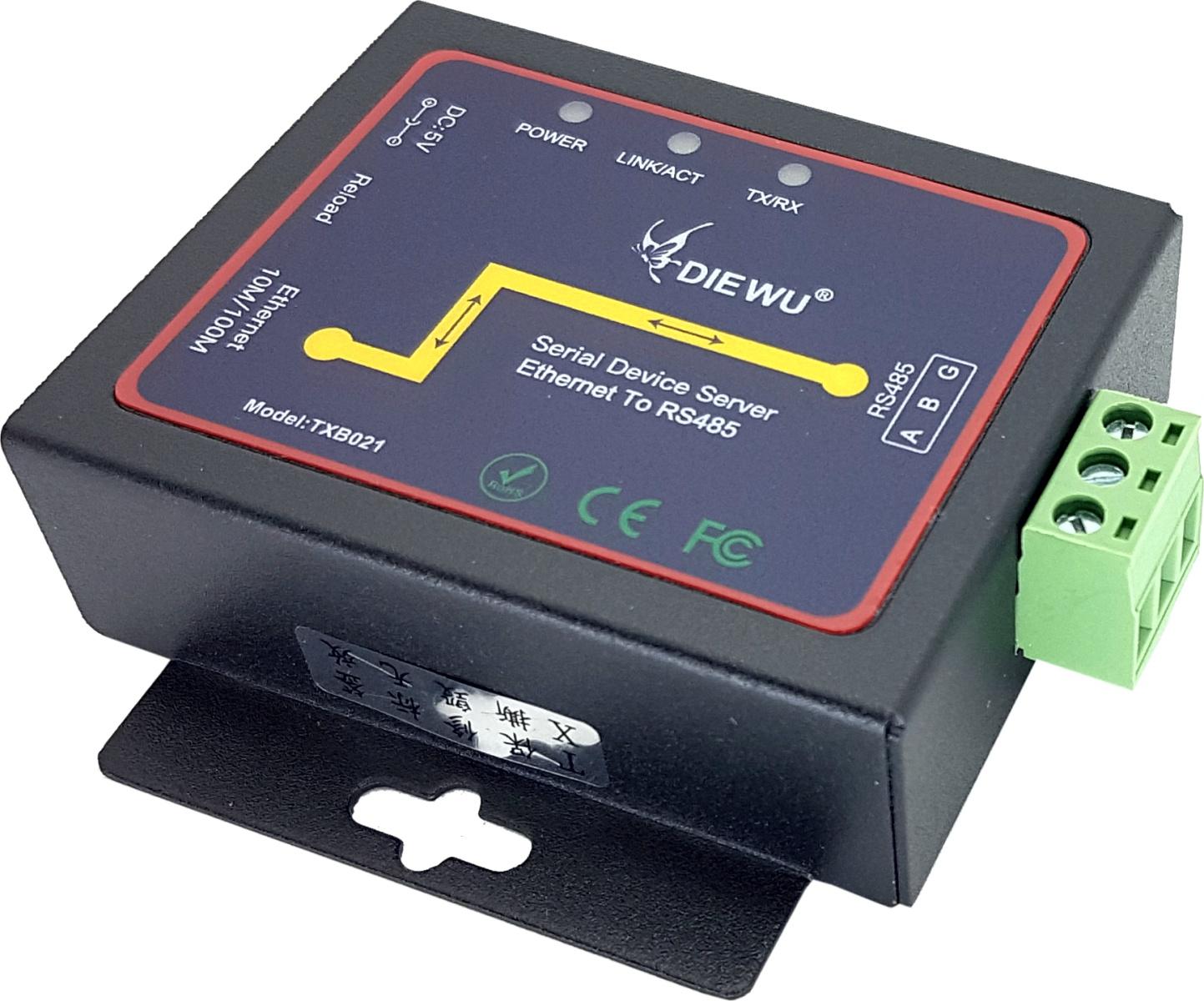

ETHERNET TO RS485 – TXB021

Ethernet To RS485 Device

Model Number: TXI021

Chipset: IP210

Port Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1Port RS485

Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az

Network Media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data Rate: 10/100M

Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator: Link/Act, Power, TX/RX

Baud Rate: 110bps – 256000bps

Operation Modes: TCP Server, TCP Client, UDP

Dimension: 78 x 72 x 23mm

Power Input: DC5V

Power Consumption: Max1.5W

Environment

Operating Temperature: -10 -55

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40-85

Relative Humidity: 5%-90%(non-condensing)

Other function: Build load default key

Device Default Parameters

ID: Admin

Password: System

IP Address: 192.168.2.1

Operation Mode: TCP Server

Transmission Mode: RS485

Baud Rate: 57600bps

UART Parameters: 57600,8,N,1

Local Port

TCP:23

UDP:21

Load Default

Power off the Device

Hold the Load Default Button

Power on the Device, hold the Button for 10 seconds, then release Default Button
