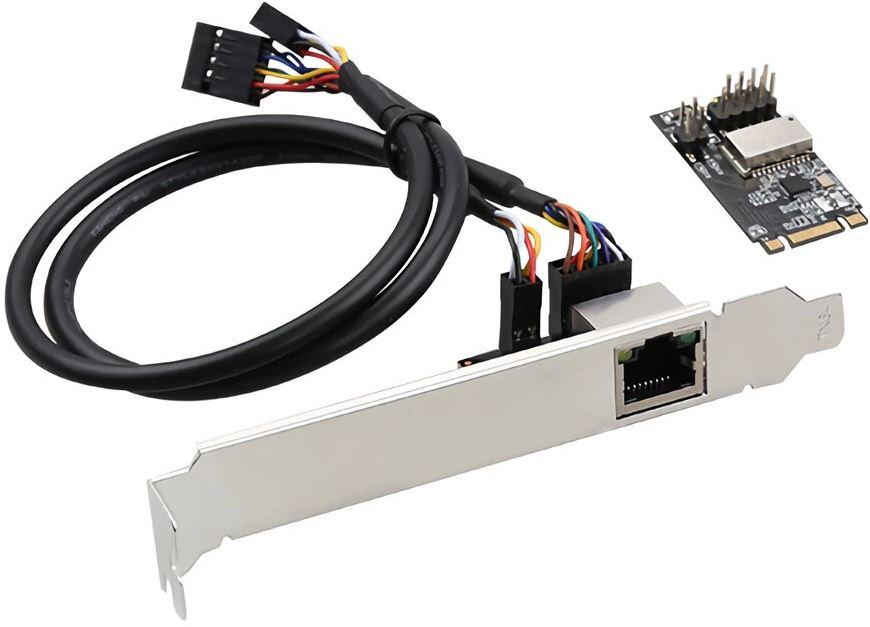

M.2 1G LAN CARD FOR REALTEK 8111H – TXA082
The TXA082 M.2 Gigabit Ethernet Adapter is a high performance 10/100/100 BASE-T Ethernet LAN Controller
It is suitable for converting the M.2 slot at the PC end into Gigabit Ethernet RJ45 Interface
Supporting Features such as NDIS5 checksum and large send offload for lower CPU Utilization
Jumbo frames and VLAN Tagging, this M.2 Gigabit Adapter is ready to handle a wide variety of scenarios
Applications
Add a Gigabit networking port to a PC with a M.2 slot
Replacement for a failed built-in Gigabit Ethernet Port
Features
M.2 2242 Key B/M
A single 10/100/1000Mbps compatible RJ45 Ethernet Port
2 status LEDs for link and activity
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
9KB Jumbo Frame Support
Microsoft NDIS5 Checksum Offload (IPV4, TCP, UDP) and Large Send Offload Support
Full and half Duplex Support
Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
Hardware
Form Factor: M.2 2242 B-M
Card Type: Embedded
Chipset ID: Realtek RTL8111H
Industry Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab,1000BASE-T
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow
Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
Interface RJ45: (Gigabit Ethernet)
Max Power Consumption: 0.6W (3.3V@170mA)
Ports: 1
Performance Auto
MDIX: Yes
Auto-Negotiation: Yes
Compatible Networks: 10/100/1000 Mbps
Flow Control: Full duplex flow control
Full Duplex Support : Yes
Jumbo Frame Support: 9K max.
Maximum Data Transfer Rate: 2 Gbps (Ethernet; Full-Duplex)
Connector(s)
Connector Type(s): 1 M.2 B+M Key
External Ports: 1 – RJ-45 Female
Software
OS Compatibility: Windows 7, 8.x, 10, 11
Windows Server 2008 R2, 2012, 2016, 2019,
2022; Linux 2.6.31 to 5.x
